Motorized Devices

Motorized MAV-test stations

Motorized MAV-force testers are a reliable way to determine tensile and compressive forces up to 10,000 N due to their constant testing speeds. Technical data of all motorized devices can be found in the respective data sheets or at the end of this page within the comparative table. Information regarding the tooling may be found under the tab “Products” - “Tools”.

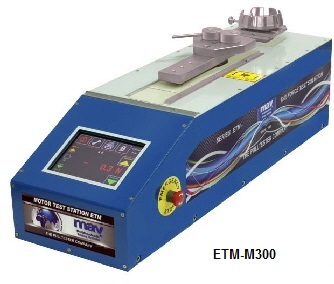

Motorized Testers ETM - M

Innovative, redesigned model series featuring a high measurement resolution, suitable for tensile and compressive force measurements.
Easy-to-use, robust construction, optimized drive.
Modern TFT-touchscreen-display with LED-backlight.
10,000 Hz measuring frequency.
Available indication ranges: 0-50/250/500/1,000/3,000/6,000/10,000 N.
Accuracy: 10,000 steps (equals 0,05 N in case of 500 N device).
Two construction sizes: up to 3,000 N & 6,000 / 10,000 N.
Features ETM-M:

Different programs (e.g. break-stop, holding under load etc.), freely selectable testing speed.
Precise lentgh measuring system (way-path-measurement) with grafical representation of measurement curve.
RS232 interface and since version 2 (starting with Oktober 2020) with extended ethernet interface for high-speed updates and with REST-API for indiviudual interface configurations.

Download ETM-M data sheet.

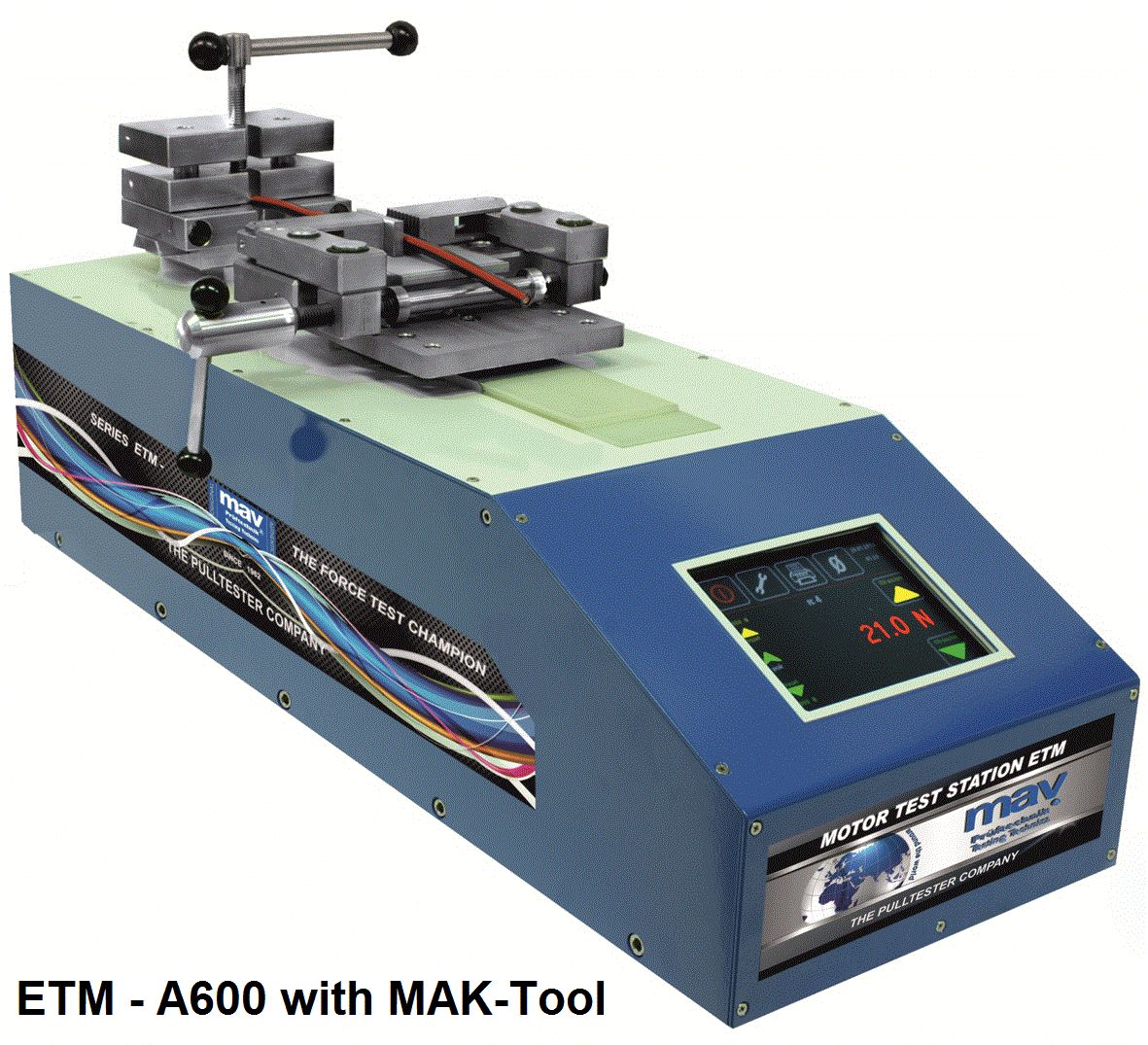

Motor Test Station ETM-A

Versatile electronic test station for tensile and compressive force tests.
Operation via TFT-multitouch-display with led-backlight
10,000 Hz measuring frequency.
Indication ranges: 0-50/250/500/1,000/2,000/5,000/10,000 N.
Accuracy: 10,000 steps (equals 0.05 N in case of 500 N device).
Two construction sizes: up to 3,000 N & 6,000 / 10,000 N.
Testing speed is freely selectable.
Additional programs like break-stop and holding under load.
RS232 interface and since version 2 (starting with Oktober 2020) with extended ethernet interface for high-speed updates and with REST-API for indiviudual interface configurations.

Download ETM-A data sheet.

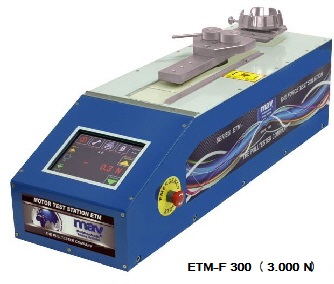

Motorized Tester ETM-F

Innovative, redesigned model series featuring a high measurement resolution, suitable for tensile and compressive force measurements.
Easy-to-use, robust construction, optimized drive.
TFT-Multitouch-Screen with LED-Backlight.
10,000 Hz measuring frequency.
Indication ranges: 0-50/100/250/500/1,000/3,000/6,000/10,000 N.
Accuracy: 10,000 steps (equals 0.05 N in case of 500 N device).
Two construction sizes: up to 3,000 N & 6,000 / 10,000 N.
F-Version: No additional programs, 5 preset testing speeds (25/50/75/100/150/ +600 or 800 mm/min)

Download ETM-F data sheet.

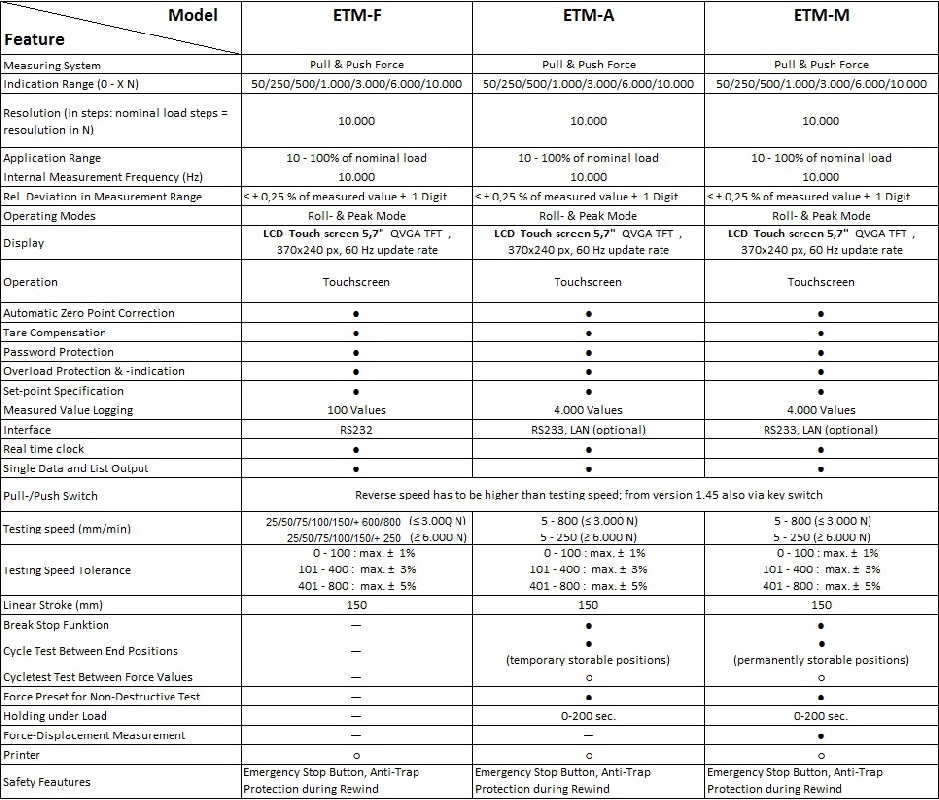

Model overview - technical data of motorized MAV-testers in comparison

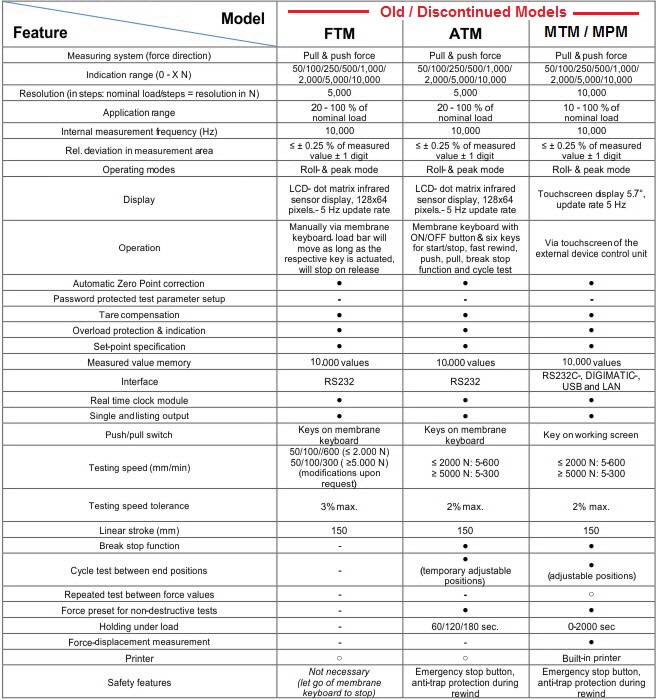

(MPM/FTM/ATM are listed to ensure comparability, but are not part of the delivery program any more; ETM-F/A/M are successors.)
